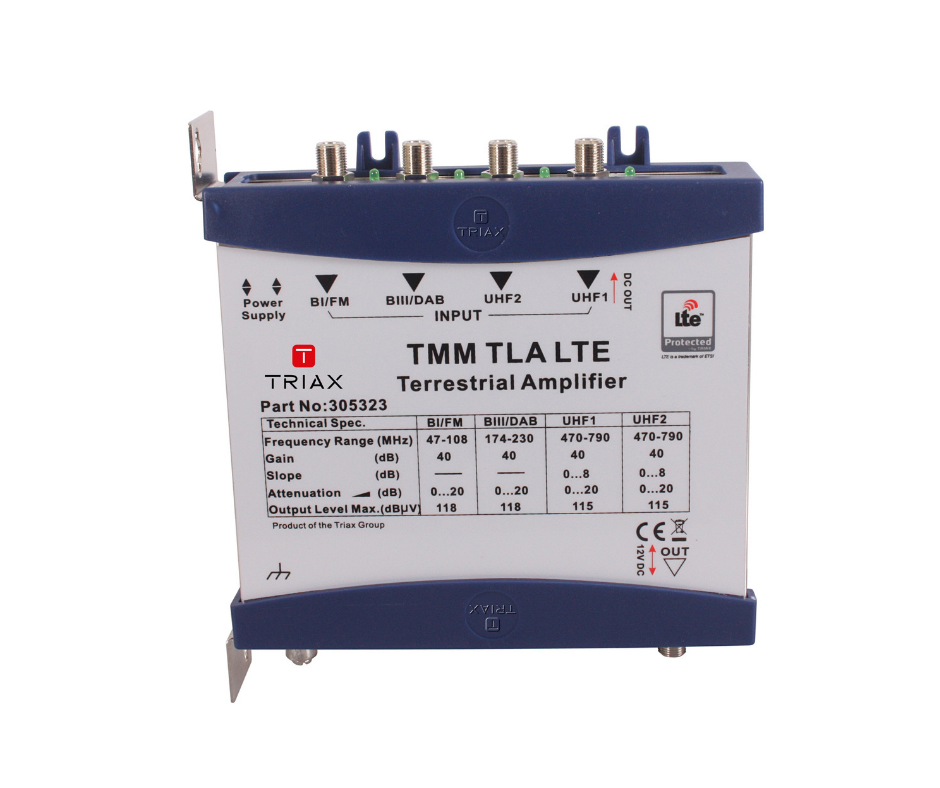

Multiswitch Amplifier
- LTE Protected
- Split band inputs, single output
- Band I/II (FM), Band III (DAB) plus two UHF inputs
- High gain
- Gain control on all inputs, slope control on UHF inputs
- Line powered via output or powered from external power supply
- Switchable masthead amplifier supply on UHF 1 input
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663053236 |
| CHARACTERISTICS | |
| Type | Amplifier – IF |
| Output level TER – 47-862 MHz | 118 (VHF), 115 (UHF) dBµV |
| FREQUENCY | |
| Frequency range DAB | 174-230 MHz |
| Frequency range FM | 87.5-108 MHz |
| Frequency range | 47-790 MHz |
| Frequency range UHF | 470-790 MHz |
| GAIN | |
| Gain – TER | 40 dB |
| Slope control SAT | (0…8dB, TER) |
| LOSS | |
| Attenuation | 0-20 dB |
| Rejection @ 821 MHz (LTE D6) | 25 dB |
| Rejection @ 862 MHz (LTE U6) | 0 dB |
| RETURN LOSS | |
| Return loss TER | 10.0 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Current consumption | 320 mA |
| LED indicator | Yes |
| CONNECTORS | |
| Number of outputs | 1x TER |
| Connector Type | F-female |
| Number of trunk inputs | 4 |
| Number of trunk outputs | 1 |
| Number of inputs | 4x TER |
| MECHANICAL | |
| Product Depth | 162 mm |
| Total Weight | 0,620 kg |
| Net Weight | 0,495 kg |
| Remarks | Switchable 12VDC Masthead Amplifier power on UHF 1 Input. LTE Rejection: 790-821MHz: 25dB 18VDC/320mA from External PSU (3.5mm DC jack) or Line powered via Output |
| Tara Weight | 0,125 kg |
| Product Width | 35 mm |
| Product Height | 181 mm |
