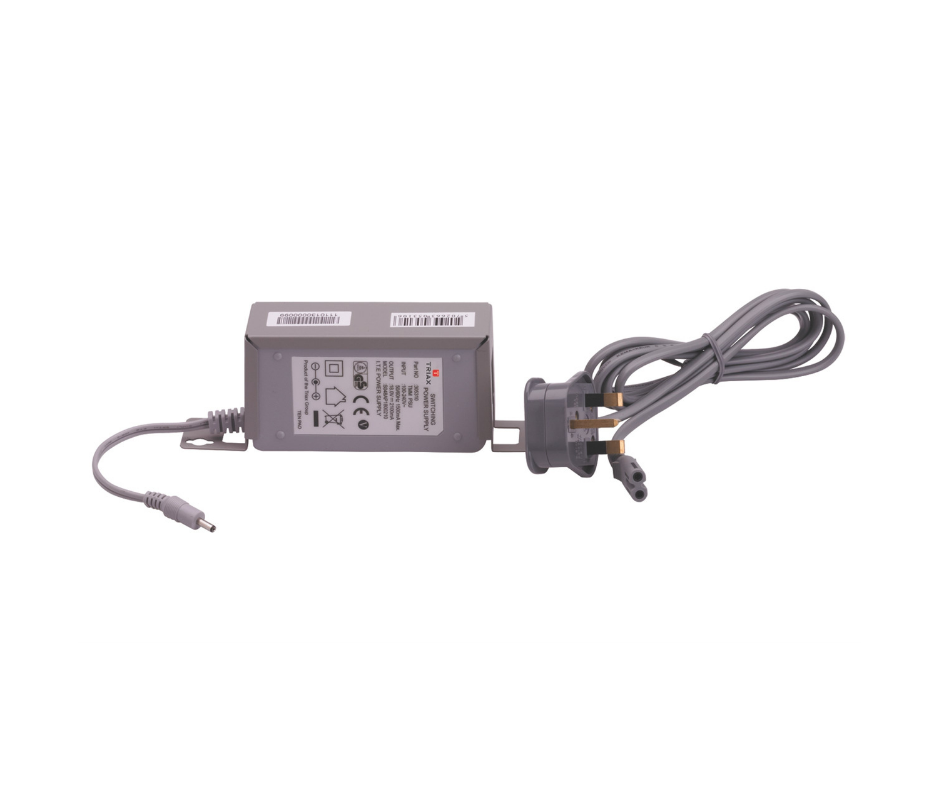

TMM Switch Mode Power Supply
- External switch mode power supply
- Rack mounted
- DC output fly lead
- Supplied with DC link lead
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663053106 |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Cable lenght from supply | 1800 mm |
| AC Supply voltage | 96…250 / 50…60Hz (1A) VAC |
| PSU output DC voltage | 18 VDC |
| PSU output max. DC current | 2000 mA |
| Inputs (230V) | 1 pcs. |
| Temperature – operating | 0 – 55 °C |
| CONNECTORS | |
| Colour coding of IF and TER inputs | Yes |
| Connector Type | 3.5mm DC male |
| Number of outputs | 1 |
| MECHANICAL | |
| Product Depth | 48 mm |
| Packaging Depth | 0,200 m |
| Packaging Height | 0,080 m |
| Total Weight | 0,385 kg |
| Packaging Width | 0,110 m |
| Net Weight | 0,320 kg |
| Remarks | Incl. power cable fitted with UK plug, mounting bracket, DC Output cable with 3.5 mm mini jack and DC Link Lead. 3.5mm DC plug on DC Output lead |
| Tara Weight | 0,065 kg |
| Packaging Volume | 0,002 m3 |
| Product Width | 88 mm |
| Product Height | 200 mm |
| Colour | Black |
