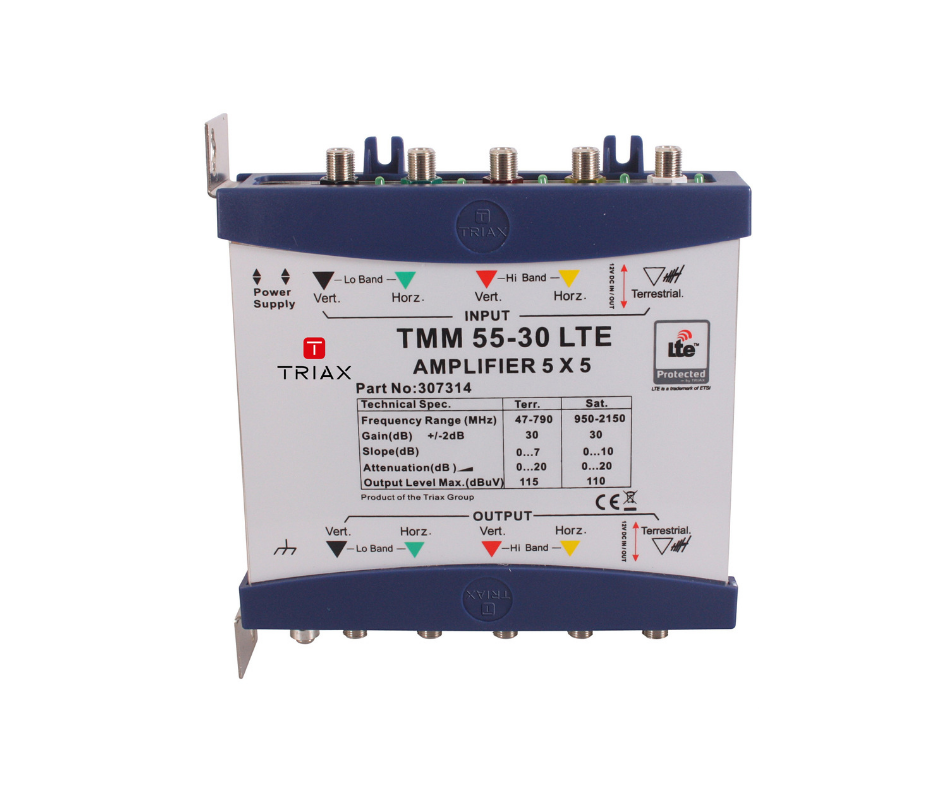

Multiswitch Amplifier
- LTE Protected
- 4 x Satellite Amplifiers plus 1 x Terrestrial Amplifier
- Gain and slope control on all inputs
- Line powered or powered from external power supply
- Power on LED’s
- Colour coded inputs and outputs
- 30dB Gain
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663073142 |
| CHARACTERISTICS | |
| LNB power supply max. | 2x14VDC / 2x18VDC, 400mA Max V/DC |
| Max. output level SAT @ -35 dB IMD3 | 110 dBµV |
| Output level TER – 47-862 MHz | 115 dBµV |
| FREQUENCY | |
| Frequency range | 47-790 (Terr) / 950-2150 (Sat) MHz |
| GAIN | |
| Gain – SAT (with 5 dB slope) | 30 (adjustable slope) dB |
| Gain – TER | 30 dB |
| Slope control SAT | 0-10dB (0-7dB Terr) |
| LOSS | |
| Attenuation – adjustable | 20 (Terr + Sat) dB |
| Rejection @ 821 MHz (LTE D6) | 25 dB |
| Rejection @ 862 MHz (LTE U6) | 0 dB |
| ISOLATION | |
| Isolation trunk to trunk | 32 dB |
| RETURN LOSS | |
| Return loss TER | 10.0 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Passthrough | Yes on all Trunk Lines |
| DC Current consumption | 460 mA |
| LED indicator | Yes |
| CONNECTORS | |
| Number of outputs | 4x SAT, 1x TER |
| Connector Type | F-female |
| Number of trunk inputs | 5 |
| Number of trunk outputs | 5 |
| Number of inputs | 4x SAT, 1x TER |
| MECHANICAL | |
| Product Depth | 162 mm |
| Total Weight | 0,715 kg |
| Net Weight | 0,590 kg |
| Remarks | Switchable 12V line power on Terrestrial Input for powering masthead amplifier DC Input via 3.5mm DC socket LTE Rejection: 790-821MHz; 25dB 18VDC/460mA from External PSU (3.5mm DC jack) or Line powered via Output |
| Tara Weight | 0,125 kg |
| Packaging Volume | 0,001 m3 |
| Product Width | 35 mm |
| Product Height | 181 mm |
