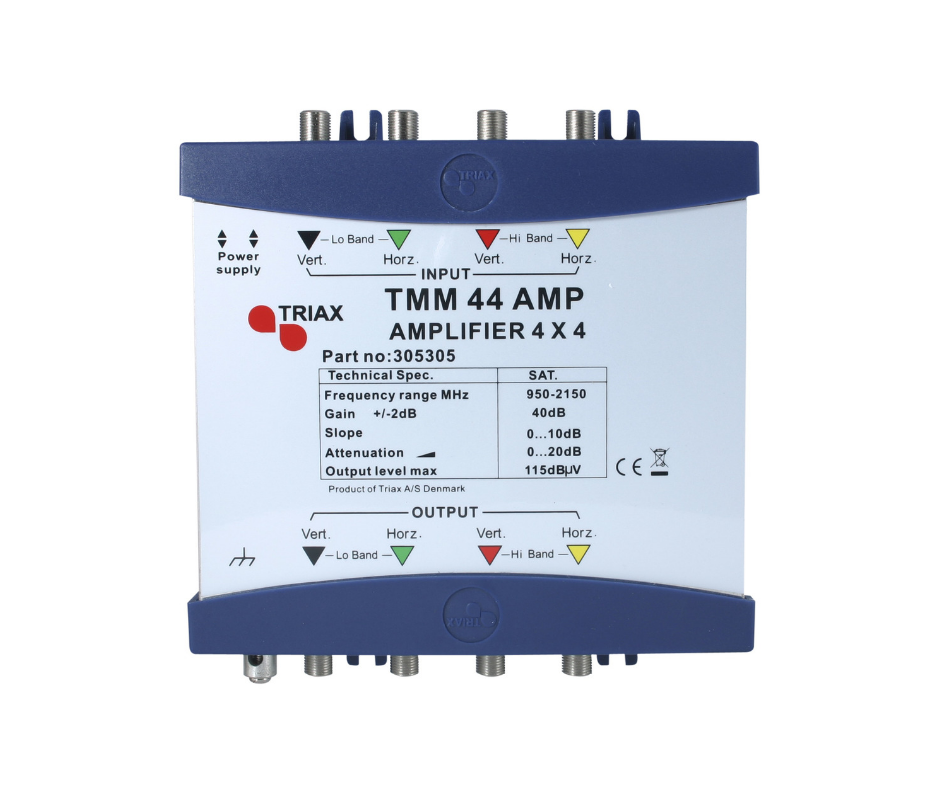

Multiswitch Amplifier
- 4 x Satellite Amplifiers
- High gain and output
- Gain and slope control on all inputs
- Line powered or powered from external power supply
- Power on LED’s
- Colour coded inputs and outputs
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663053052 |
| CHARACTERISTICS | |
| LNB power supply max. | 2x14VDC / 2x18VDC, 400mA Max V/DC |
| Max. output level SAT @ -35 dB IMD3 | 115 dBµV |
| FREQUENCY | |
| Frequency range | 950-2150 MHz |
| GAIN | |
| Gain – SAT (with 5 dB slope) | 40 dB |
| Slope control SAT | 0-10dB |
| LOSS | |
| Attenuation | 0-20 dB |
| ISOLATION | |
| Isolation trunk to trunk | 35 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Operating voltage | 18 VDC |
| DC Passthrough | Yes on all Trunk Lines |
| Temperature – operating | 0…55 °C |
| DC Current consumption | 390 mA |
| LED indicator | Yes |
| CONNECTORS | |
| Number of outputs | 4x SAT |
| Connector Type | F-female |
| Number of trunk inputs | 4 |
| Number of trunk outputs | 4 |
| Number of inputs | 4x SAT |
| MECHANICAL | |
| Product Depth | 45 mm |
| Total Weight | 0,695 kg |
| Net Weight | 0,565 kg |
| Remarks | DC In via 3.5mm socket 18V from External Power Supply or Line Powered via Inputs or Outputs |
| Tara Weight | 0,130 kg |
| Packaging Volume | 0,010 m3 |
| Product Width | 185 mm |
| Product Height | 200 mm |
