View and Control Freesat, Freeview and Sky around the home
With the introduction of digital TV’s, traditional analogue services around the home have been lost.

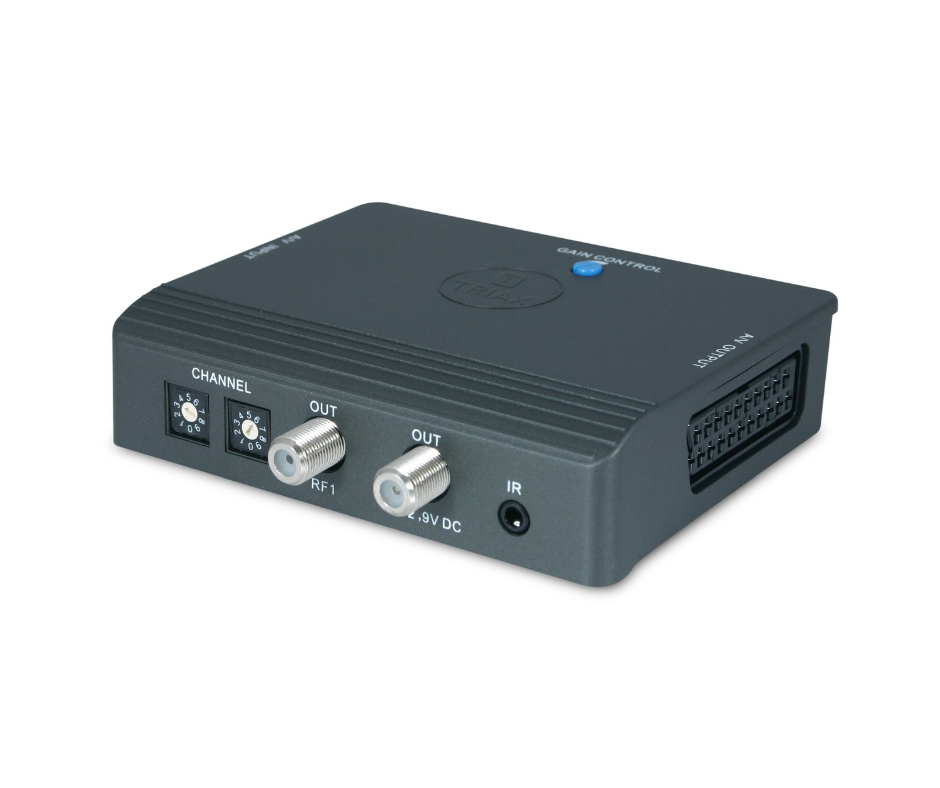

The Tri-Link kit solves the issue of distributing Freesat, Freeview and Sky around the home, with the ability to view and control all set top-boxes on existing analogue sets.
- Removes the need to purchase individual set top-boxes for each additional TV or upgrading to flat panel TV’s
- The Tri-Link can control upto 3 independent pieces of equipment including Sky+ receiver
- Can also be used to control set top-boxes from cable providers that include SCART outputs
- Watch and control recorded programmes from your PVR around the home
- Powers up Digital Link Amplifier and Link eyes
- Fully agile modulator
- SCART loop-through
- RF Gain Control +/- 10dB
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663704077 |
| CHARACTERISTICS | |
| Audio Input | 1.0Vp-p / 600Ohms |
| Colour-TV standard | PAL I |
| Video Input | 1.0Vp-p / 75Ohms |
| View Angle | 40 (IR Tx) ° |
| Infra Red Sensor Lead | 800 m |
| FREQUENCY | |
| Channel Select | 21 to 68 (Default Ch 36), 72dBuV O/P Level Typ |
| IR frequency | 7 MHz Carrier (On-Off Keyed) MHz |
| IR Signal Frequency | 37.9kHz Carrier MHz |
| Output frequency range | 47-862 MHz |
| Input frequency range | 47-862 MHz |
| GAIN | |
| Gain Control | 0-15 dB |
| Gain | 10 (RF In > RF Out 1/2) dB |
| Noise figure | <4 dB |
| OPERATIONAL | |
| DC Operating voltage | 12 VDC |
| External PSU | Included |
| LINE power current (max.) | 250 mA |
| LINE power DC voltage (max.) | 9VDC on RFOut2 VDC |
| DC Current consumption | 500 mA |
| LED indicator | Yes |
| CONNECTORS | |
| Number of outputs | 2 |
| Connector SCART | SCART in/out |
| Connector DC | F-female |
| RF connector – input | ‘F’ Female |
| RF connector – output | ‘F’ Female x 2 |
| Infra Red Connector | 3.5mm socket |
| Number of inputs | 1 |
| MECHANICAL | |
| Main material | Plastic housing ABS |
| Colour | RAL 7016 – Anthracite grey |
| Total Weight | 0,475 kg |
| Product Length | 113 mm |
| Net Weight | 0,350 kg |
| Remarks | Supplied as kit containing: Tri-Link Power Supply (12VDC / 500mA) Twin IR Transmitters 1 x Digital Link eye |
| Tara Weight | 0,125 kg |
| Packaging Volume | 0,001 m3 |
| Product Width | 110 mm |
| Product Height | 33 mm |
