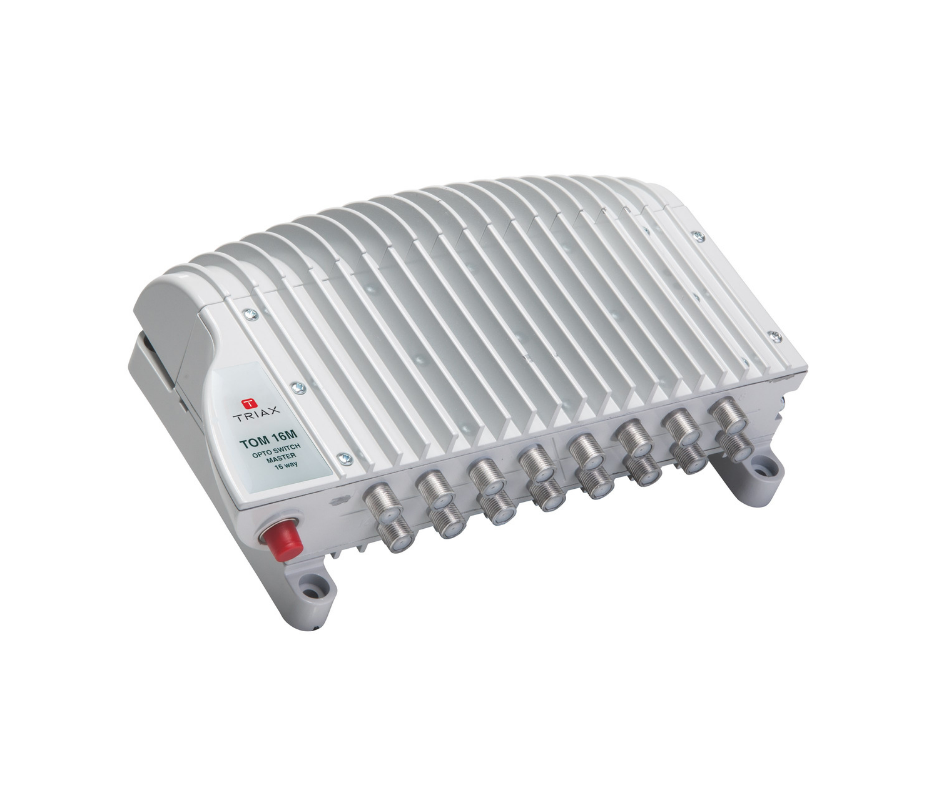

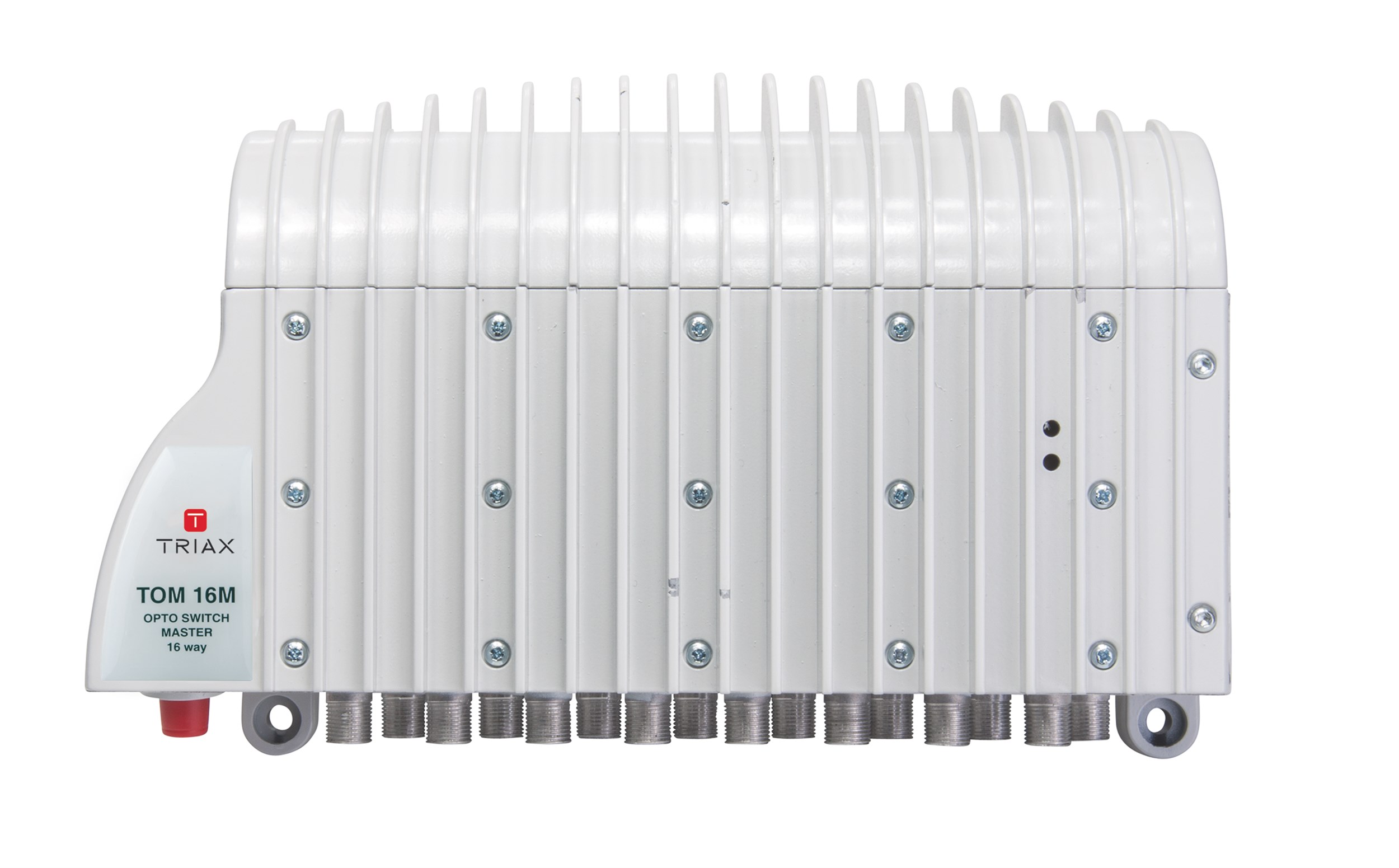

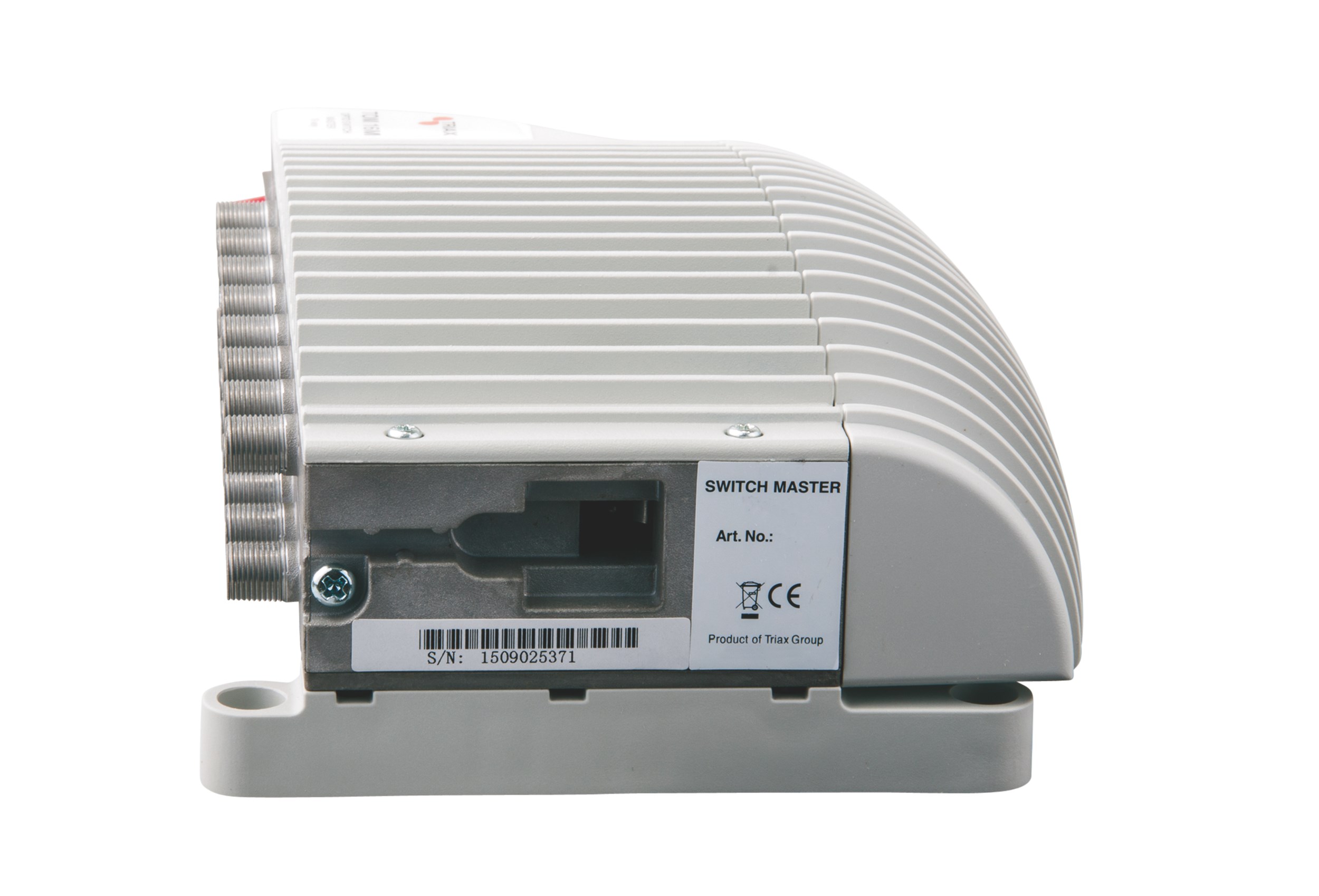

TOM 16 M, Opto SwitchMaster 16 way
The Opto-Multiswitch combines the Optical-to-Electrical Re-converter with an integrated Multiswitch in a sophisticated way.
The Opto Multiswitch features a built-in optical-to-coaxial Re-converter. All SAT-IF bands along with Terrestrial signals are
available on every output. The SAT-IF bands are choosen from the SAT receivers controlled by DiSEqC format.
The Opto SwitchMaster is the standalone base unit for recep-tion of one SAT position and terrestrial broadcast signals.
The TOM 16 M provides 16 outputs where SAT receivers con be connectted directly.
Reception can be extended to 2, 3 or 4 satellites by plugging additional Opto SwitchSlave units into the Opto SwitchMaster.
- Smart installation with cascadable master & slave units.
- All-in-one Receiver, Converter & Multiswitch.
- Compatible with the Optical LNB TOL 32 / TOL 64 or Optical IRS 1 which includes TER (DTT, DAB, FM).
- Very compact form factor and reliable disign on base of the new chip set in ASIC technology.
- Ideal for SAT FTTH/FTTB networks because of easy and space-saving installation without any coaxial patch cables
between re-convertrer and multi-switch. - Easy upgrade for receptionn of more than one satellite position.

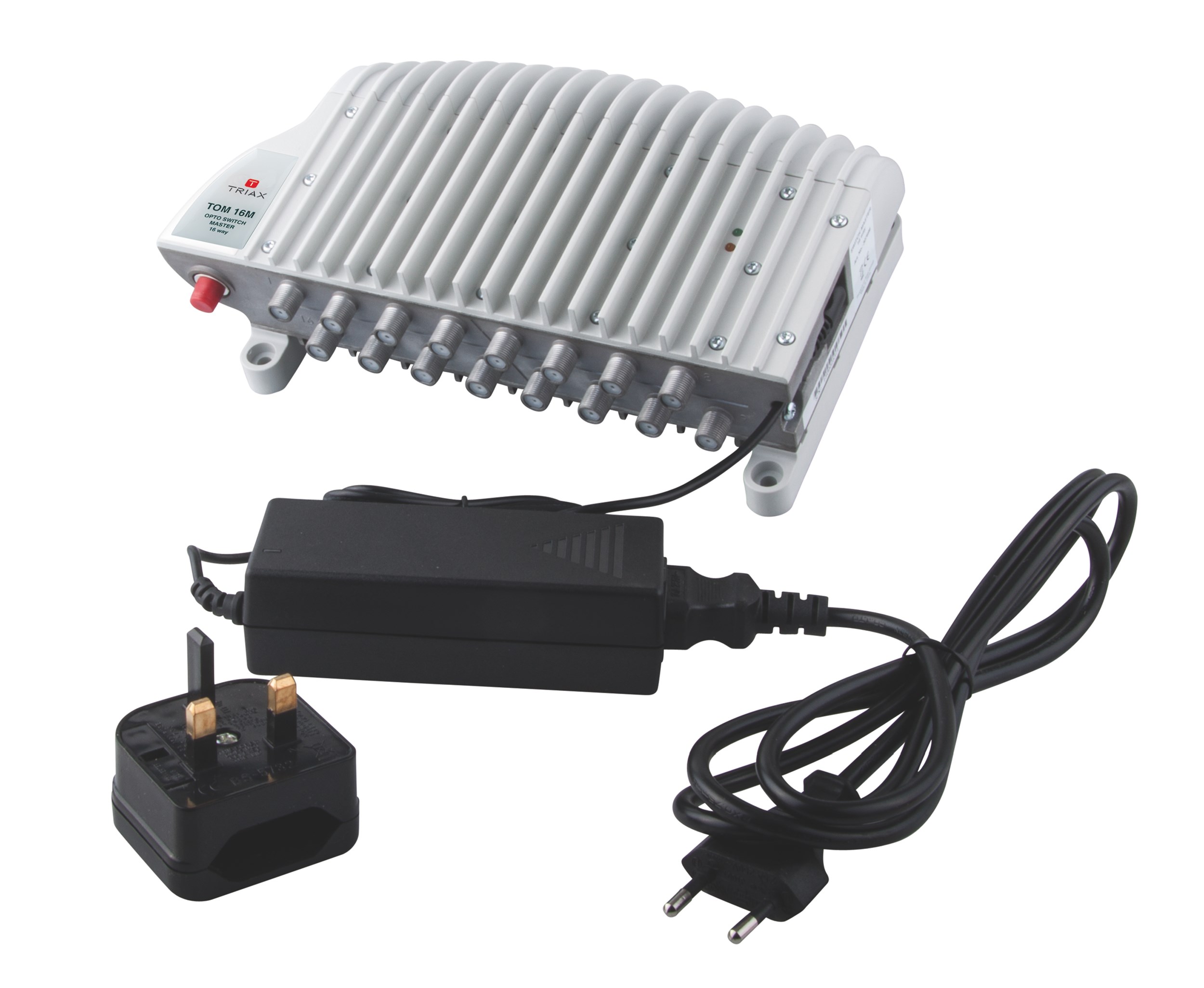

- Included desk top PSU only for Master necessary.
- Capability of Frequency Morphing by software to adapt to other SAT standards in world.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663076969 |
| OPTICAL CHARACTERISTICS | |
| Optical input power | -12…-3 (TOL32, TOU232) / -14…-3 (TOL64) dBm |
| CHARACTERISTICS | |
| AGC (Automatic Gain Control) | 30 dB |
| Output level SAT | 75 dBµV |
| Output level TER | 69 dBµV |
| Vertical High band (1.95 to 3.0 GHz) | 1100…2150 (>14.5V 22KHz) MHz |
| Vertical Low band (0.95 to 1.95 GHz) | 950…1950 (>14.5V) MHz |
| Wavelength | 1100…1650 nm |
| Horizontal High band (4.4 to 5.45 GHz) | 1100…2150 (>15.5V 22KHz) MHz |
| Horizontal Low band (3.4 to 4.4 GHz) | 950…1950 (>15.5V) MHz |
| FREQUENCY | |
| RF frequency range, horizontal polarities | 3.4…5.45 GHz |
| RF frequency range, vertical polarities | 0.95…3.0 GHz |
| TER frequency range DAB | 174…241 MHz |
| TER frequency range DTT | 470…854 MHz |
| TER frequency range FM | 88…108 MHz |
| RETURN LOSS | |
| Return Loss | >10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Operating voltage | 12 VDC |
| External PSU | Included |
| AC Supply voltage | 100…240 VAC |
| Temperature – operating | -20…50 °C |
| DC Current consumption | 1200 mA |
| CONNECTORS | |
| Connector Type | Optical – FC/PC |
| Connector IN | Optical – FC/PC |
| Connector OUT | F-male / F-female (x16) |
| MECHANICAL | |
| Dimensions product (H x D x W) | 227 x 138 x 67.5 mm |
| Packaging Depth | 0,210 m |
| Packaging Height | 0,075 m |
| Total Weight | 1,850 kg |
| Packaging Width | 0,340 m |
| Net Weight | 1,800 kg |
| Remarks | Output TER on ports 1…16 |
| Tara Weight | 0,050 kg |
| Packaging Volume | 0,005 m3 |
| Packing QTY | 1 |
