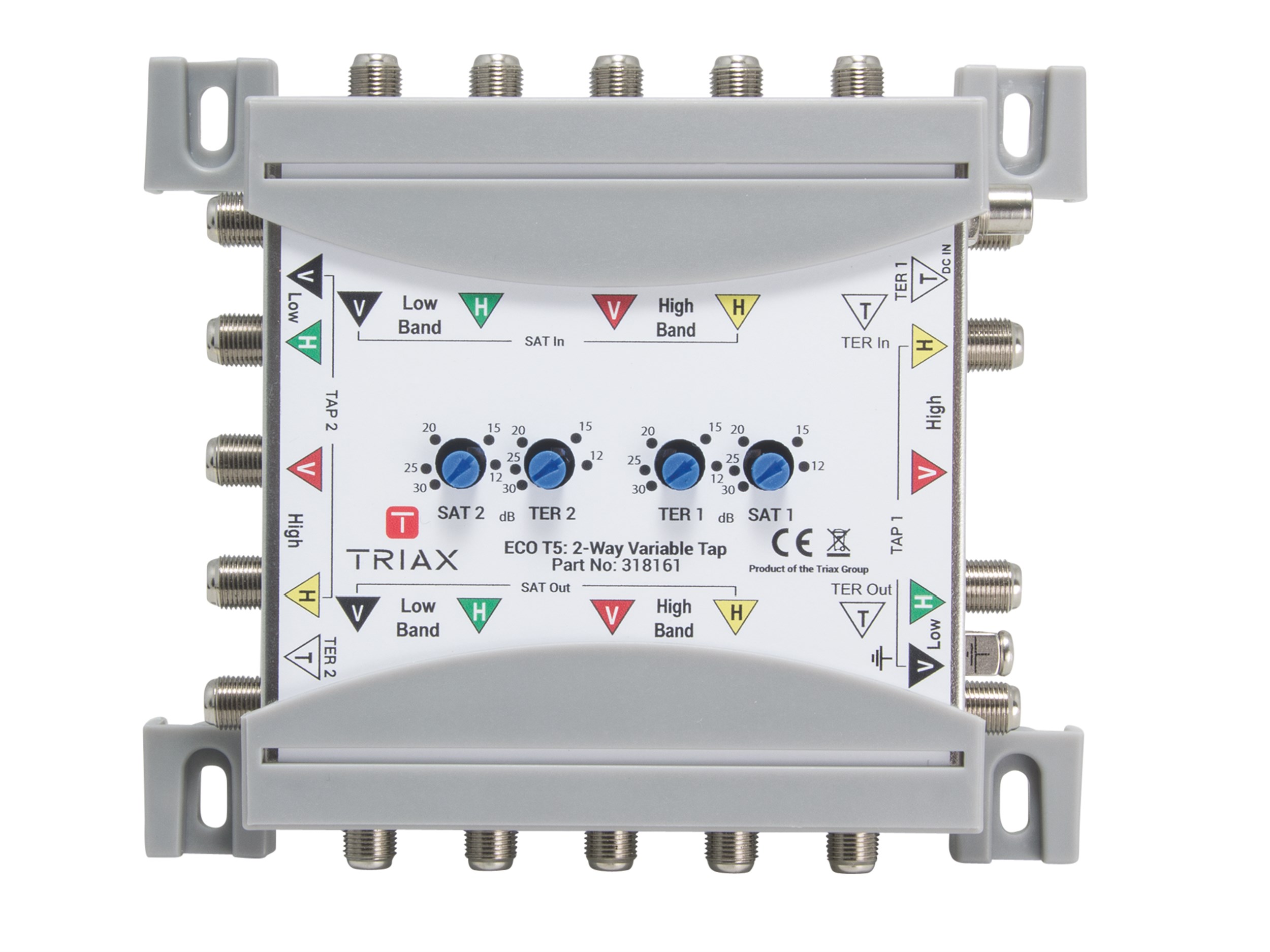

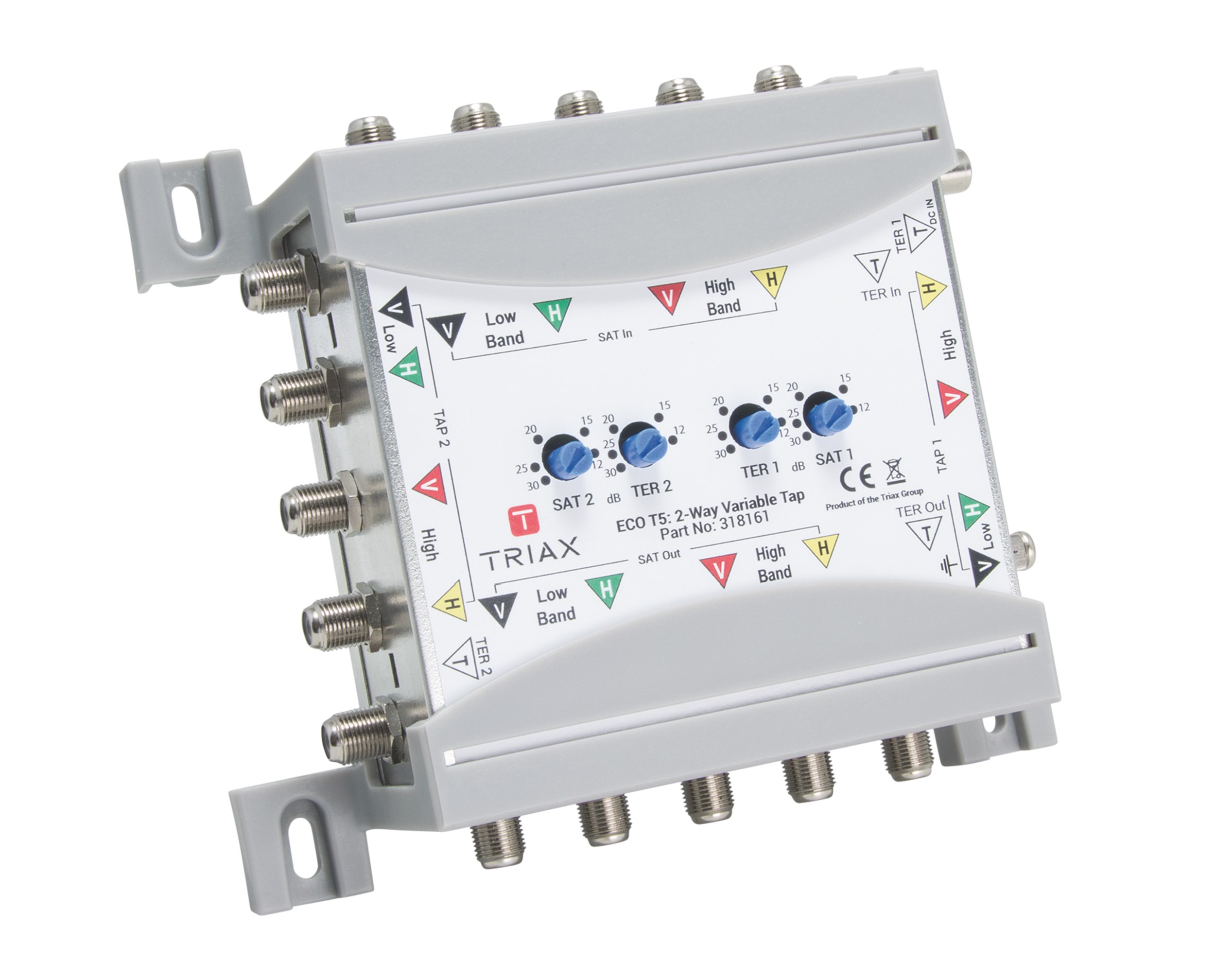

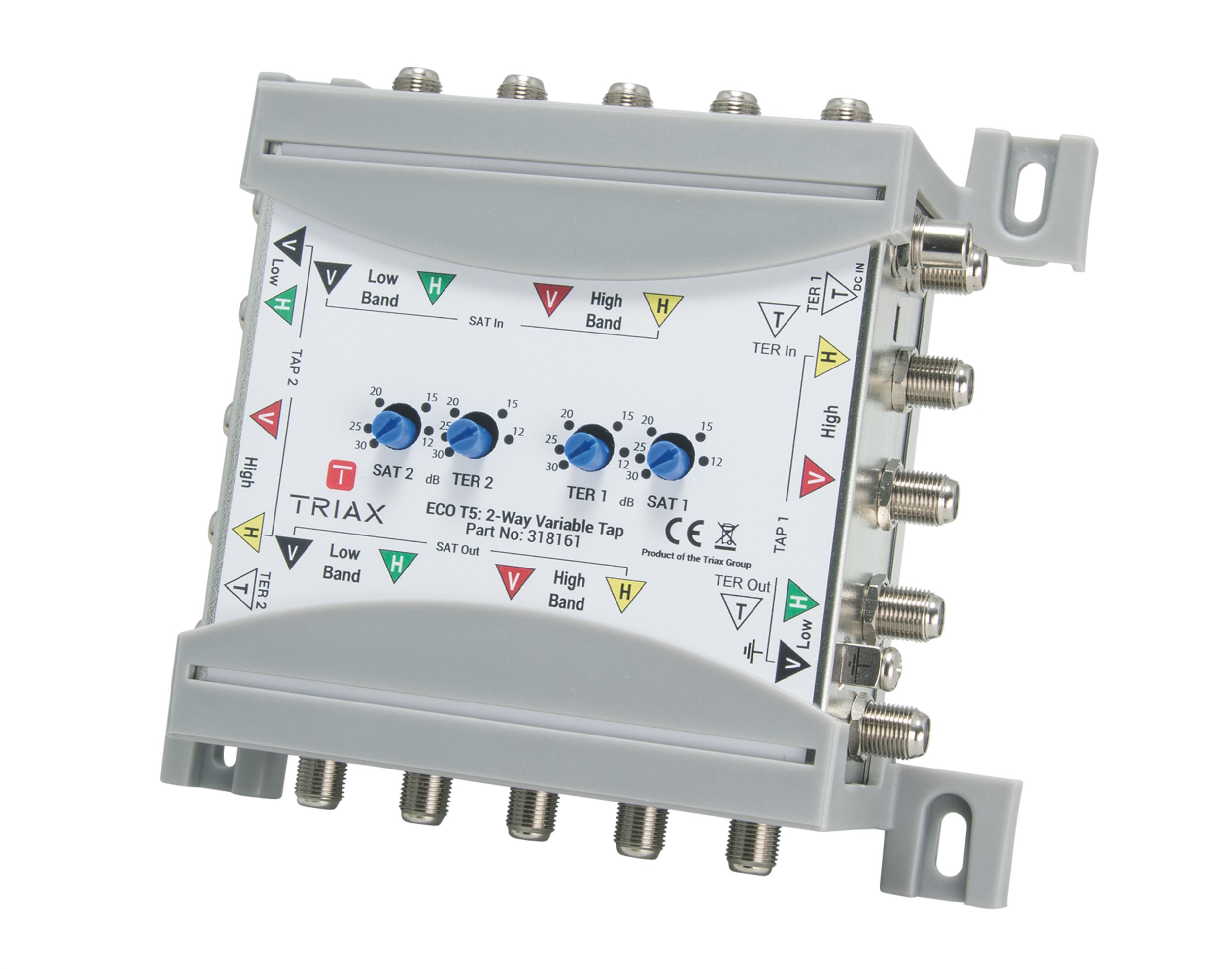

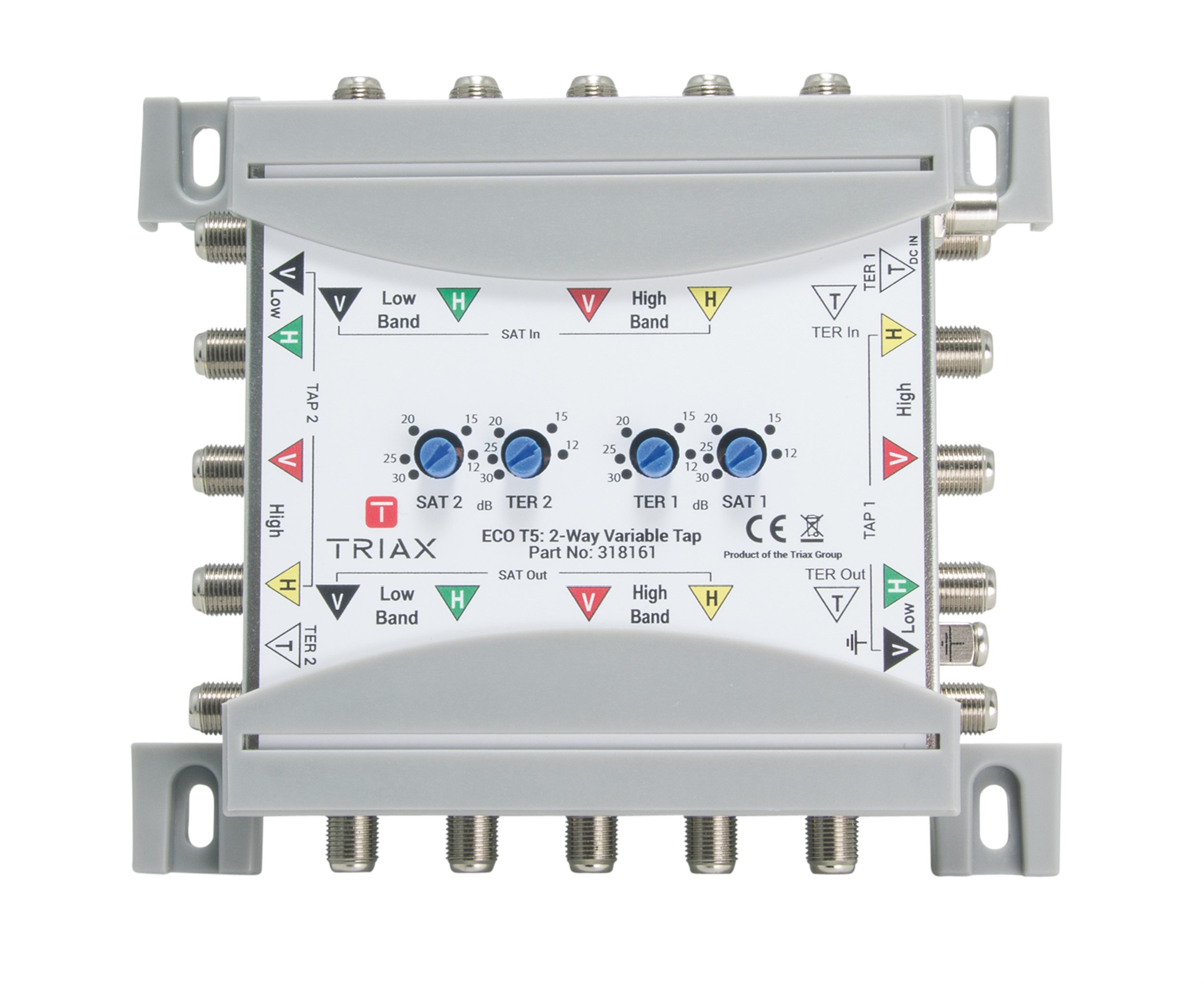

Adjustable TAP – 2 Way – for ECO T5 series switches
- 4 x SAT / 1 x Terrestrial Inputs
- 4 x SAT / 1 x Terrestrial Tapped Outputs x 2
- 4 x SAT / 1 x Terrestrial Outputs
- 75 Ohm impedance
- Requires power from any satellite port
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663181618 |
| CHARACTERISTICS | |
| Type | T5 Adj TAP, 2 way |
| FREQUENCY | |
| Frequency range SAT | 950…2400 MHz |
| Frequency range TER | 40…790 MHz |
| LOSS | |
| Tap loss SAT | 12…30 dB |
| Tap loss TER | TER1/2: 12…30 (@+/-1dB steps) dB |
| Insertion loss – SAT | 2…4 +/-1 dB |
| Insertion loss – TER | 3,5 +/-1 dB |
| RETURN LOSS | |
| Return loss TER | >10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Passthrough | Yes |
| External PSU item ID | 318151 |
| LINE power current (max.) | < 120 mA |
| LINE power DC voltage (max.) | 15 VDC |
| Temperature – operating | -20…70 °C |
| CONNECTORS | |
| Connector Type | F-female |
| Colour coding of IF and TER inputs | VL=Black, VH=Red, HL=Green, HH=Yellow |
| Number of inputs | 5 |
| MECHANICAL | |
| Total Weight | 0,605 kg |
| Net Weight | 0,485 kg |
| Tara Weight | 0,120 kg |
| Product Depth | 62 mm |
| Product Length | 160 mm |
| Product Width | 140 mm |
