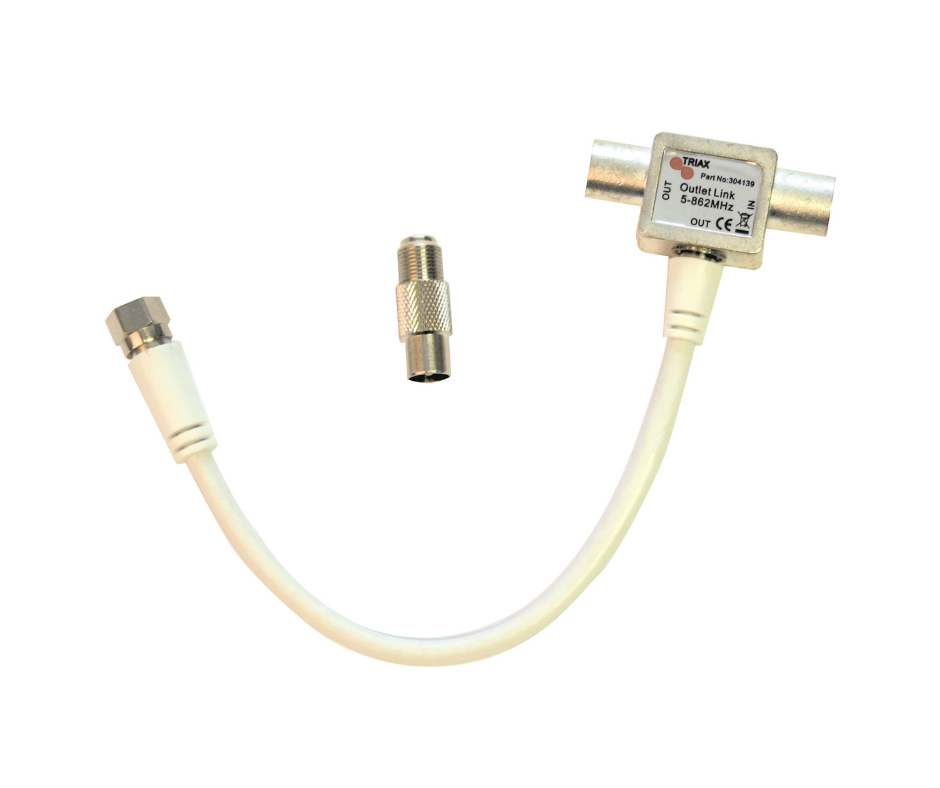

Provides a neat and simple solution for connecting the TV and return outputs of an outlet where a Sky receiver is not installed.
Designed for use with the TRIAX outlets 304109, 304114, 304264, 304265, 304286, 304287.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663041394 |
| CHARACTERISTICS | |
| Type | 2-Way Split / Return Link |
| FREQUENCY | |
| Frequency Range TV | 5…862 MHz |
| LOSS | |
| Through Loss IN-TV | 4.0 dB |
| CONNECTORS | |
| Connector IN-OUT | IEC-female |
| MECHANICAL | |
| Product Depth | 30 mm |
| Total Weight | 0,100 kg |
| Net Weight | 0,100 kg |
| Remarks | Screened Di-Cast housing Return Output on white fly lead, length 210mm Supplied withIEC Male to ‘F’ Female adaptor Suitable for use with TRIAX Outlets: 304109 304114 304264 304265 304286 304287 IEC Female x 2 / ‘F’ Male on Return Lead |
| Product Width | 100 mm |
| Product Height | 130 mm |
