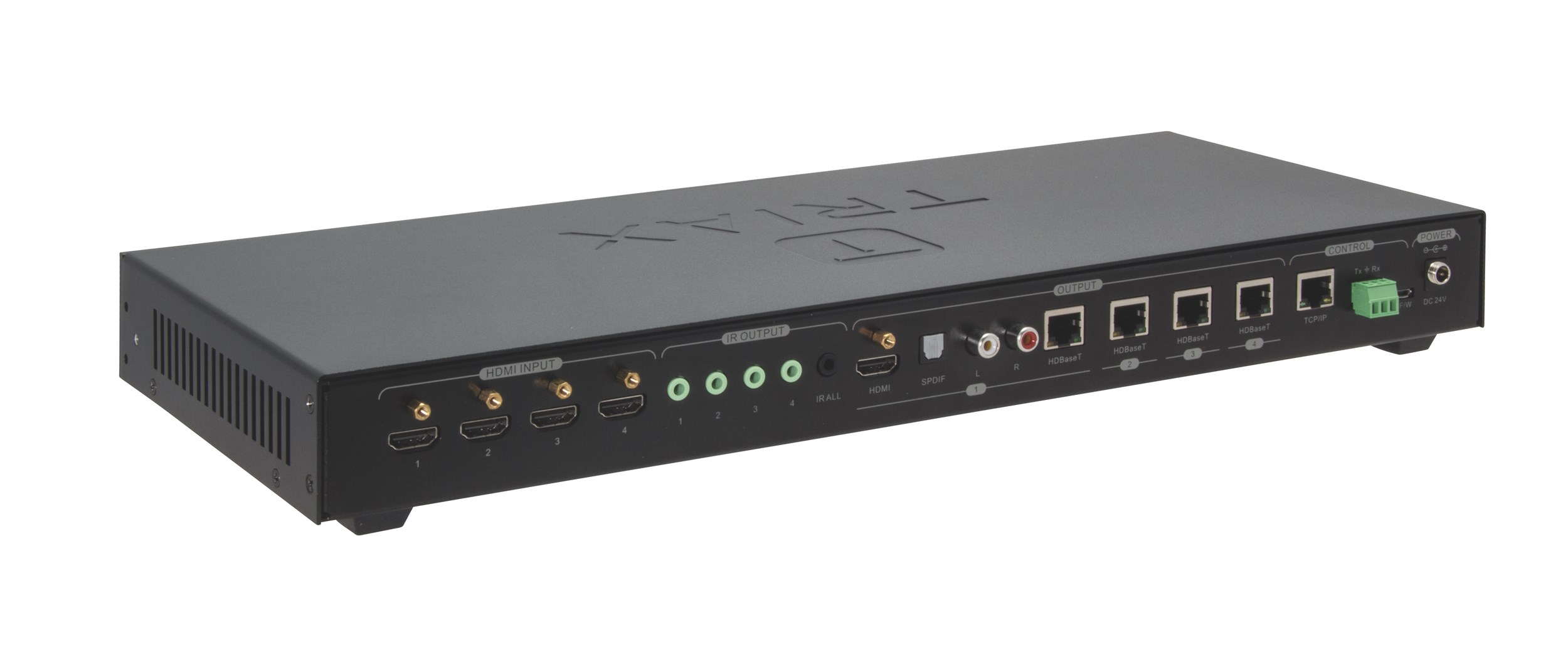

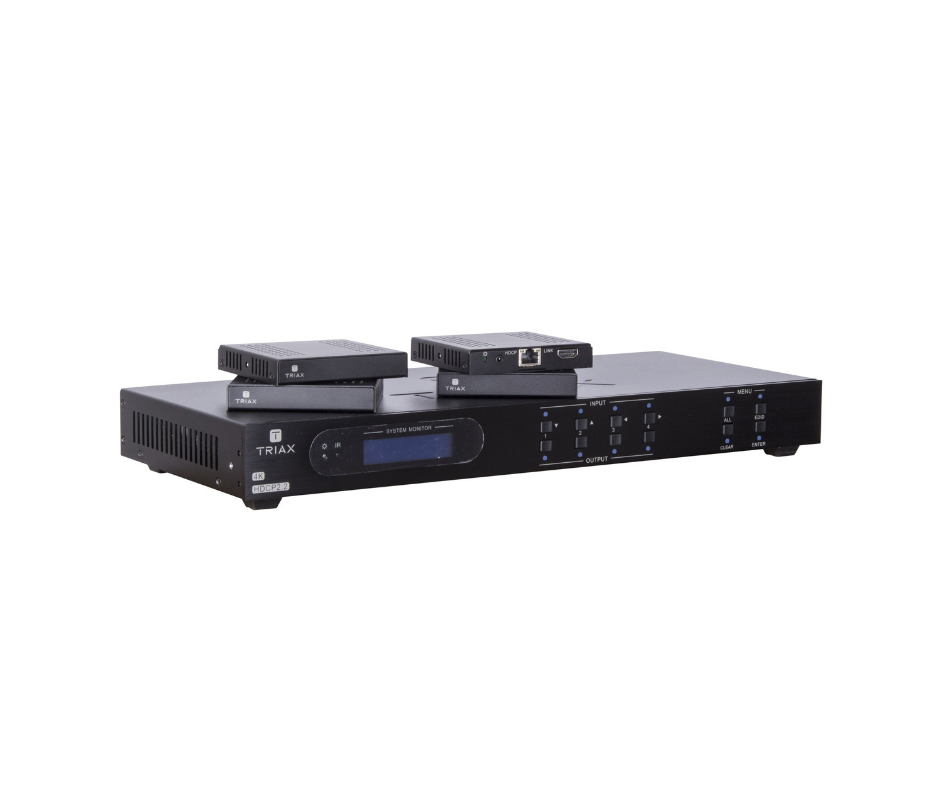

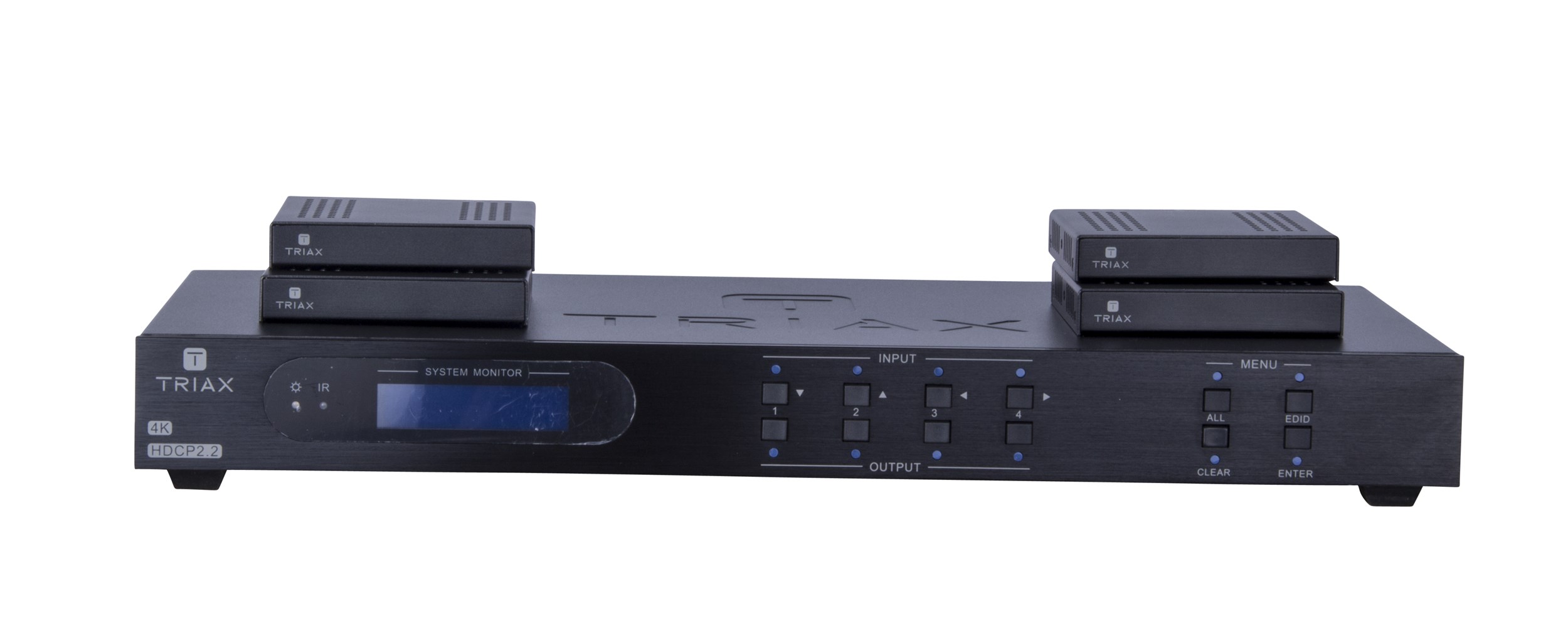

HMX 441 4K Kit is a set including :
– 1 x matrix 4×4 HMX 441

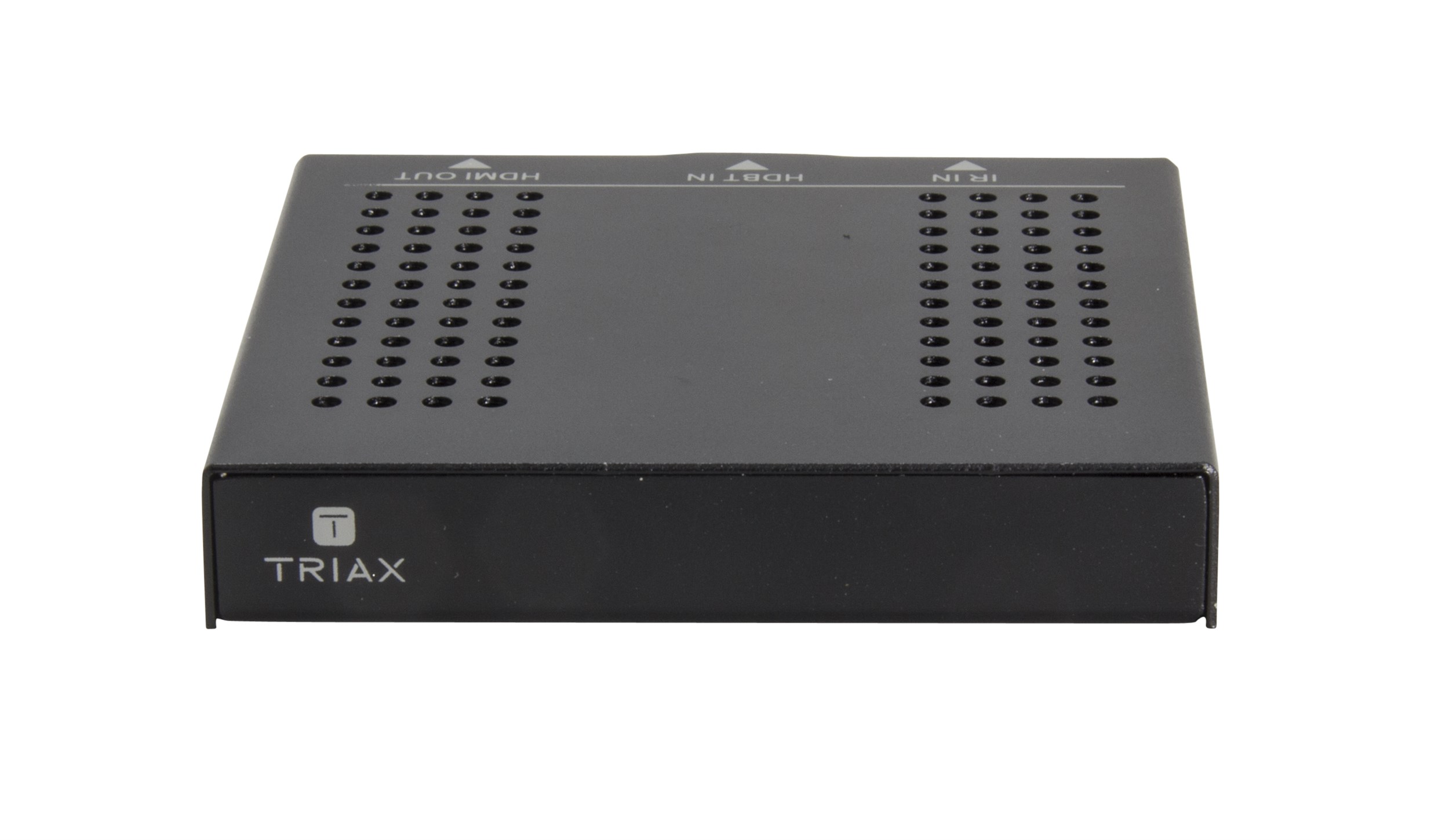

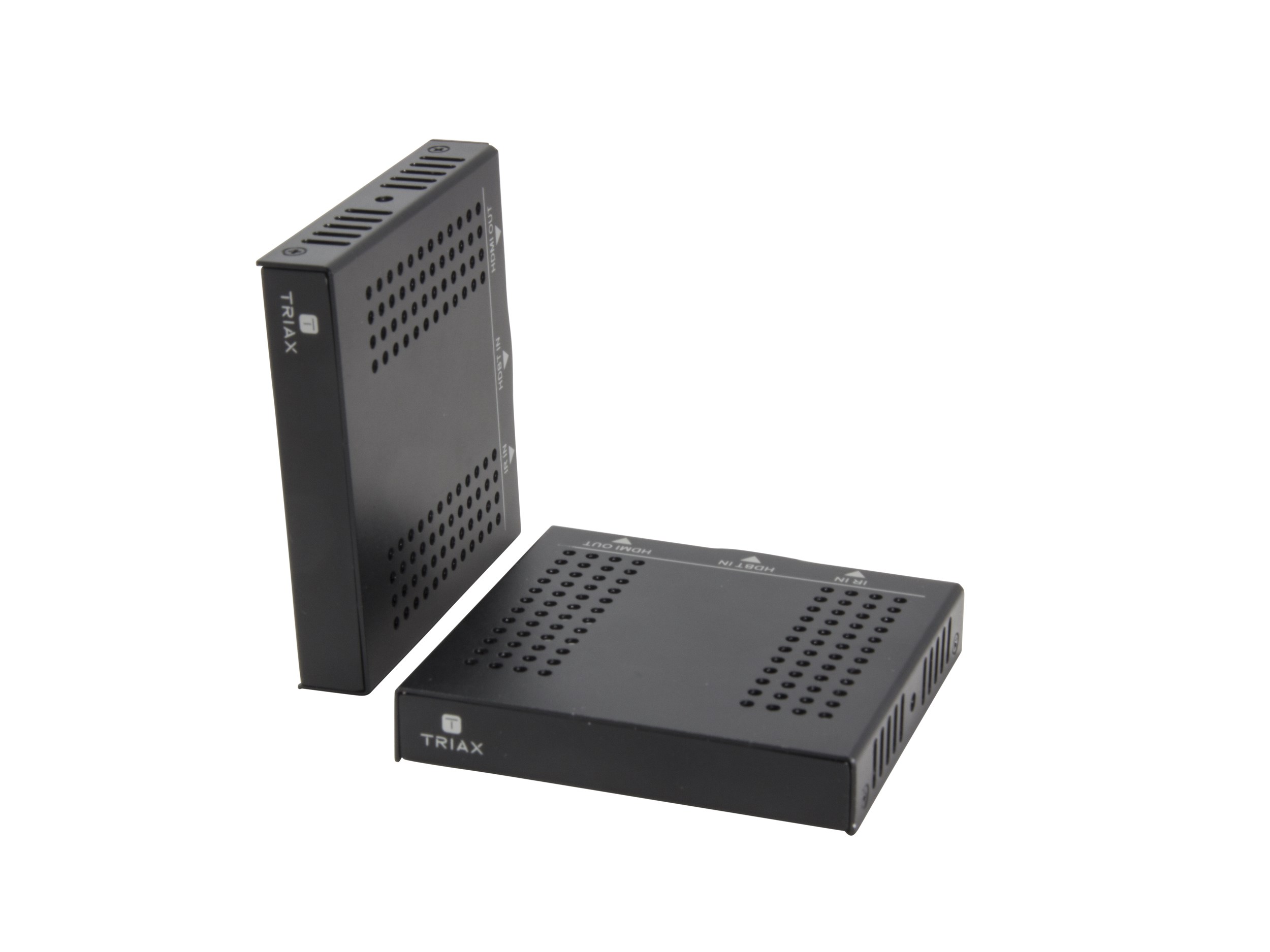

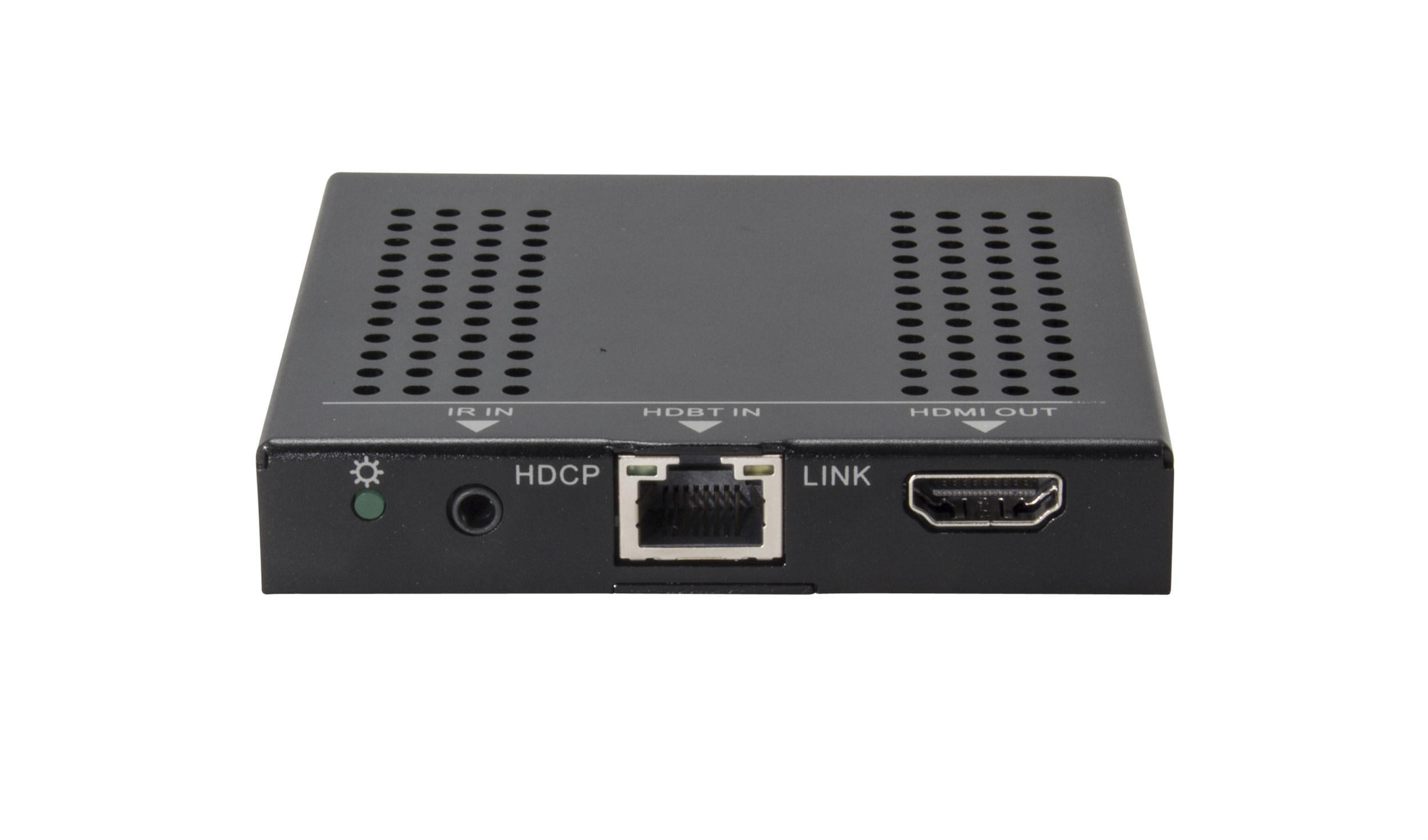

– 4 x super slim receivers
– 4 remote controls
– 5 x IR emitters
– 4 x IR receivers
– 3 x regional power cords (UK, EU, NZ/AU)
This kit supports 4K resolution, HDMI 1.4 & HDCP 2.2. HDBaseTTM outputs support PoC (Power over Cable). The signals can be received up to 70m for 1080p and a maximum of 40m at 4Kx2K.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663100602 |
| CHARACTERISTICS | |
| Audio Output | L&R (jack) ; AVR (HDMI) |
| CEC | Transparent |
| Max. Pixel Clock | 225 MHz |
| Max. TMDS bandwidth | 2.9…3.3V – 100 ohms |
| Output video level | 2.9…3.3 Vpp |
| Switching Speed | < 200 nS |
| Video Input | HDMI 1.4 & HDCP 2.2 |
| Video output | 1 x HDMI female (AVR), 4 x RJ45 female; HMDI 1.4, DHCP 1.4 |
| Video resolution | 1080p, 3D, 4Kx2K Pixel |
| Operating Distance | 70m@1080p, 40m@4Kx2K mm |
| Input video level | 2.9…3.3 Vpp |
| HDMI Version | 2.0 |
| FREQUENCY | |
| Audio frequency response | 20 ~20.000 Hz |
| GAIN | |
| Video gain | 0 |
| ELECTRICAL | |
| Impedance | 100 Ω |
| OPERATIONAL | |
| Complience | HDMI 1.4, HDCP 2.2, HDBaseT, |
| Data rate | 10.2 Gbit/s |
| DC Operating voltage | 24 VDC |
| External PSU item ID | PSU 115, P/N 310061 |
| External PSU | Included |
| AC Supply voltage | 100 ~ 240 VAC |
| PoE out | Yes only for powering TRIAX family type devices |
| Power Consumption (typ.) | 51 W |
| PSU output DC voltage | 24 VDC |
| Temperature – operating | -5…40 °C |
| Temperature – storage | -10…40 °C |
| DC Current consumption | 2710 mA |
| CONNECTORS | |
| Connector Audio out | RCA (Phono, Cinch) male |
| Control Ports | IR, RS232 |
| Number of outputs | 4 |
| Output | 4 x HDBaseT, 1 x AVR (HDMI), 4 x IR, 1 x IR ALL, 1 x digital audio, 1 x audio L&R |
| Input | 4 x HDMI, 1 x TCP/IP, 1 x RS232, 1 x power plug |
| Number of inputs | 4 |
| MECHANICAL | |
| Product Depth | 180 mm |
| Packaging Depth | 0,180 m |
| Packaging Height | 0,044 m |
| Total Weight | 2,500 kg |
| Packaging Width | 0,436 m |
| Net Weight | 2,000 kg |
| Packing QTY | 1 |
| Tara Weight | 0,500 kg |
| Packaging Volume | 0,003 m3 |
| Product Width | 436 mm |
| Product Height | 44 mm |
| Colour | Black |
| Main material | Aluminium |
